Frame Repairs

I have not been able to find a lot of information on frame repairs and alterations. There are some videos on the ubiquitous YouTube that cover the odd instance. The Paterek manual, one of the few frame building guides, does give some helpful advice and this advice certainly seems sensible. My take on this is that you should ideally AVOID THE TORCH. Obviously adding parts and remaking parts of a frame inevitably will involve heating and brazing, but this is best kept to a minimum on the basis that it will have least effect on the metal; the properties of which may be an unknown quantity. Also when brazing for a repair or alteration the use of silver, rather than brass would be the preferred option to keep the heating of metal to the minimum. Using a torch to melt silver solder may be acceptable as the melting point is relatively low, but the temperature needed to melt brass braze is higher than that needed to braze it in the first place.
Therefore where possible it seems sensible to remove existing frame parts by mechanical means, such as cutting, filing, grinding and reaming wherever possible to generate the least heat, before using the torch to add the new or replacement parts. I am of course talking about steel frames. Aluminium is difficult to repair and I suspect generally not worth it; and carbon fibre probably best left to a specialist.

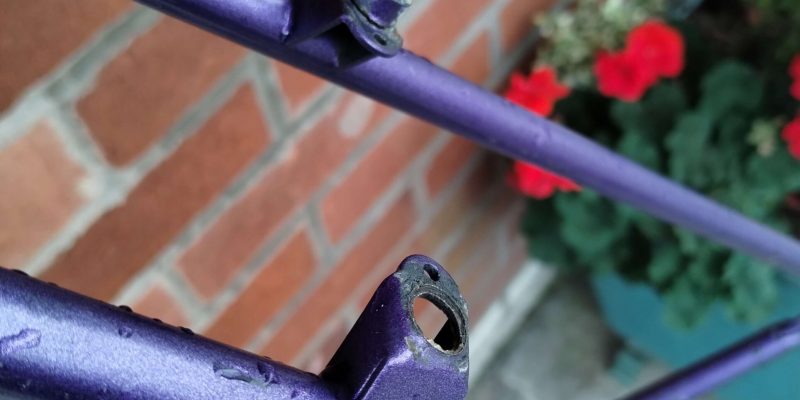

IMG_20221120_130819871

Cantilever Boss Repair

These cantilever bosses are from a ?1980’s Coventry Eagle bike. They looked as if they were stamped or cut out of sheet metal. The pivots ...
Read More
IMG_1767

A Bolt-On Top Tube

This is a frame alteration I could not have imagined needing to do, until back in 2015 I was contacted by travel author Tim Moore. ...
Read More

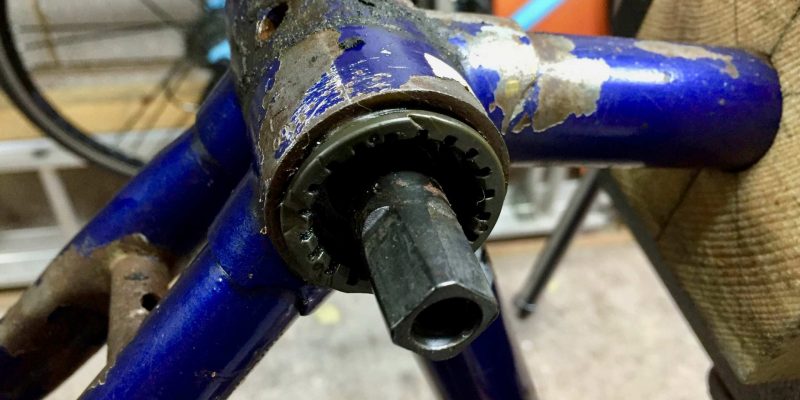

IMG_2859

Stripped Bottom Bracket Threads

There seems to be several ways of repairing the common problem of a stripped bottom bracket thread and I offer only one method I have ...
Read More

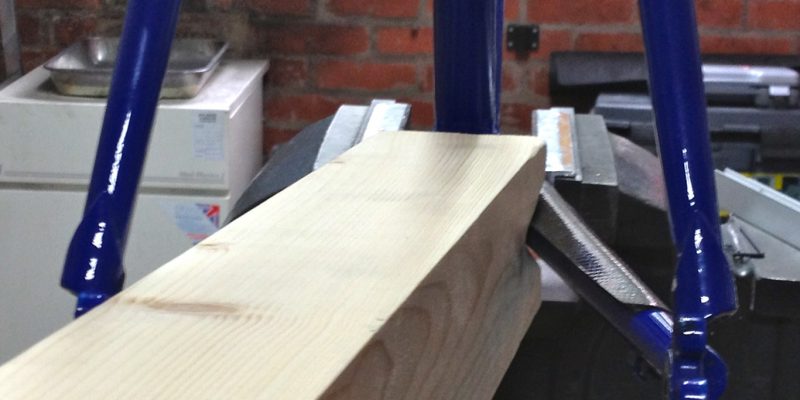

IMG_1067

Widening rear triangles

Probably the commonest alteration carried out on frames is increasing the width of the rear dropouts to accommodate wider wheels. This is often done on ...
Read More
